Portable case
with Tolex covering
2 rows 5U
1 row CP
Portable case
with Tolex covering
2 rows 5U
1 row Euro
M 500 T4 v2
Powered Tabletop Case
One row, accomodating 4 module widths.
With power supply (±15 V/0.5 A | +5 V/0.4 A), connectors for synthesizers.com and cabling. Wooden side panels are included.
Cases can be combined to achieve longer units.

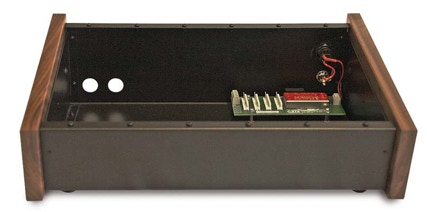

M 500 T6 v2
Powered Tabletop Case
One row, accomodating 6 module widths.
With power supply (±15 V/1 A | +5 V/0.6 A), connectors for synthesizers.com and cabling. Wooden side panels are included.
Cases can be combined to achieve longer units.

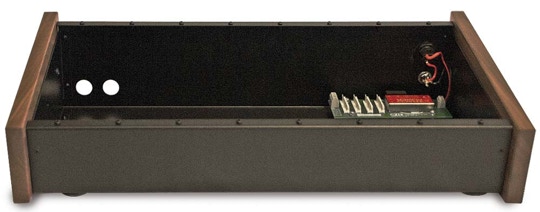

M 500 T8
Powered Tabletop Case
One row, accomodating 8 module widths.
With power supply (±15 V/1 A | +5 V/0.6 A), connectors for synthesizers.com and cabling. Wooden side panels are included. Cases can be combined to achieve longer units and are available without side panels.

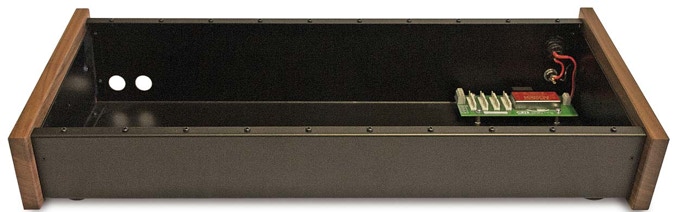

M 500 T10
Powered
Tabletop
Case
One row, accomodating 10 module widths.
With power supply (±15 V/1 A | +5 V/0.6 A), connectors for synthesizers.com and cabling. Wooden side panels are included. Cases can be combined to achieve longer units and are available without side panels.

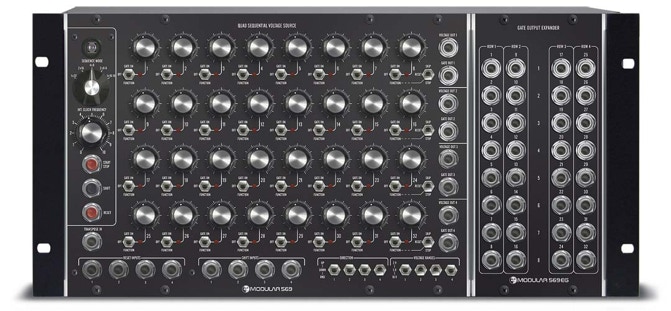

M 500
R1 v2
Powered
19“ Rack Case
One row, accomodating 8 module widths.
With power supply ((±15 V/1 A | +5 V/0.6 A), connectors for synthesizers.com and COTK, with cabling.

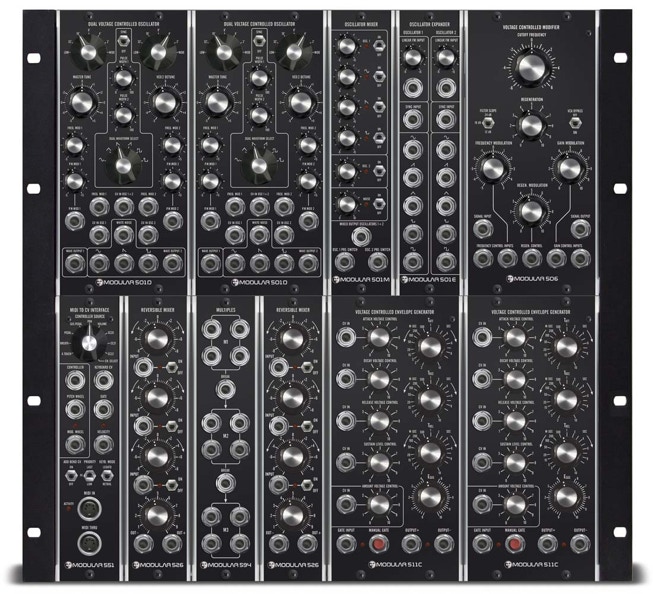

M 500
R2M v2
Powered
19“ Rack Case
Two rows, accomodating 8 module
widths each. With power supply
(+15 V/2 A | -15 V/1 A | +5 V/0.6 A),
connectors for synthesizers.com and
COTK, with cabling.

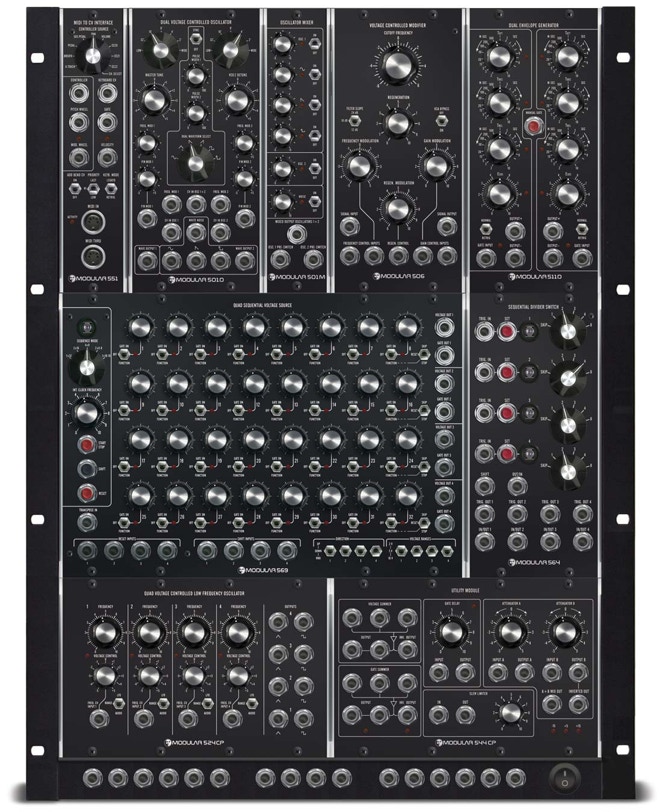

M 500
RP v2
Powered
19“ Rack Case
Two rows for 16 units and one row for modules in CP size (the CP-row matches exactly the MoogTM CP-height (5 5/8 in = 14,2875 cm). Power supply
(+15 V/2 A | -15 V/1 A | +5 V/0.6 A),
for synthesizers.com and COTK, with cabling.

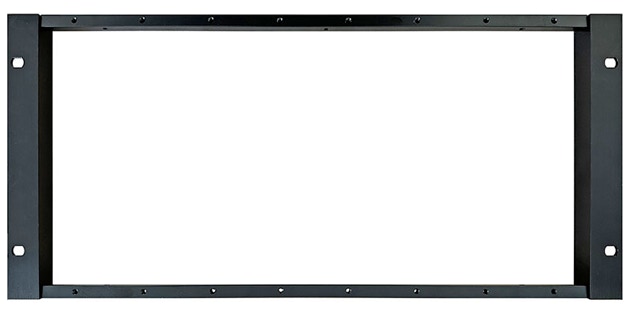

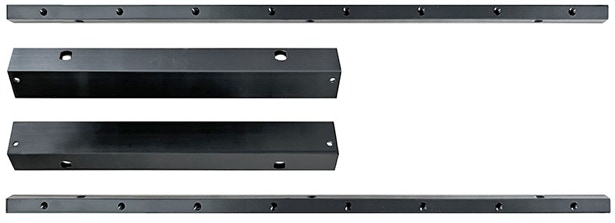

M 500 RF1
Single Row
DIY 19“ Rack
Frame Kit
The M 500-R1 single row kit makes a rack frame to set up one row/8 units wide for 5U modules into flight cases, studio racks or custom cabinets.
A set of screws to mount the modules is included.

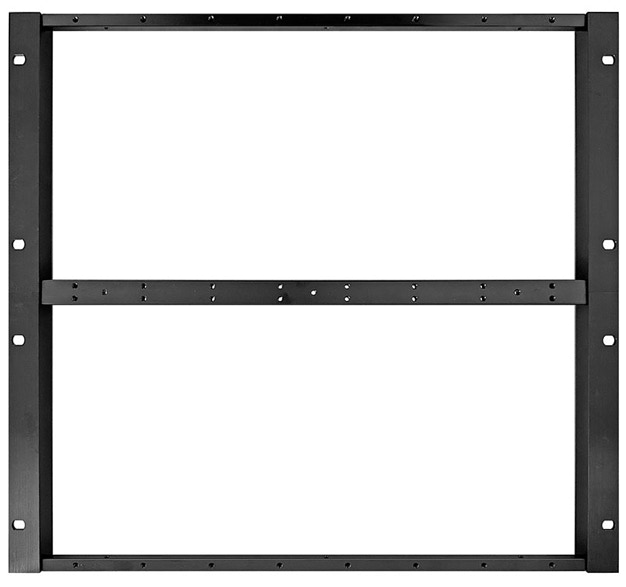

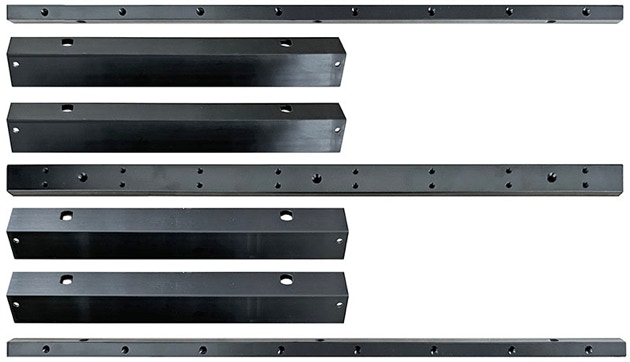

M 500 RF2
Double Row
DIY 19“ Rack
Frame Kit
The M 500-R2 double row kit makes a rack frame to set up two rows/8 units wide for 5U modules into flight cases, studio racks or custom cabinets.
A set of screws to mount the modules is included.
M 500 C10 v2
Powered Wood Case
One row, accomodating 10 module widths. With power supply (±15 V/1 A | +5 V/0.6 A),
connectors for synthesizers.com and cabling. The case is a handsome blend of birch wood and walnut.

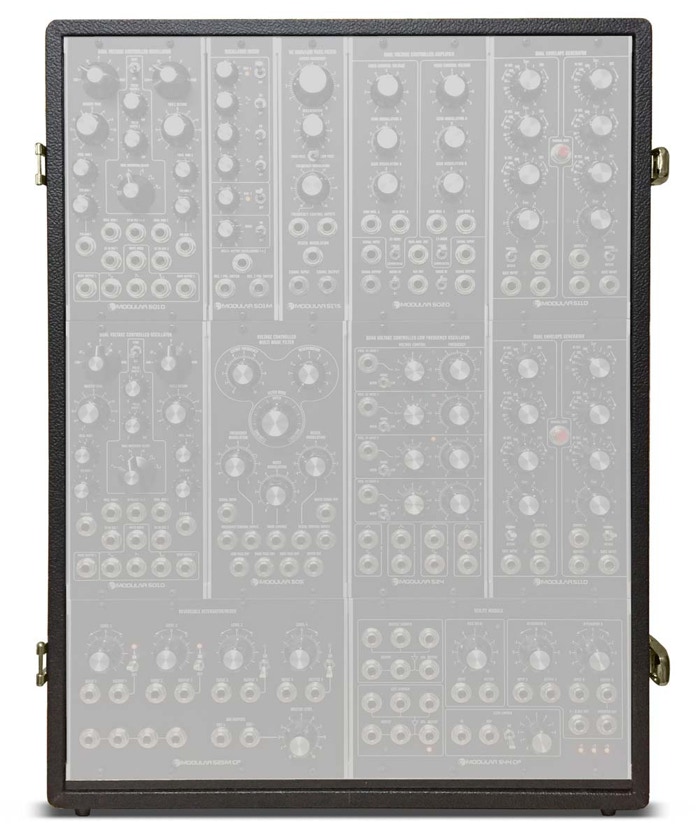

M 500-P v2
Powered Tolex Portable Cabinet
Vintage style Tolex covered portable wooden cabinet with two rows in standard height for eight units each and one row for modules in CP size.
The CP-row matches exactly the Moog™ CP-height (5 5/8 in = 14,2875 mm).
With power supply
(+15 V/2 A | -15 V/1 A | +5 V/0.6 A), connectors for synthesizers.com™ and cabling.
Including front lid.

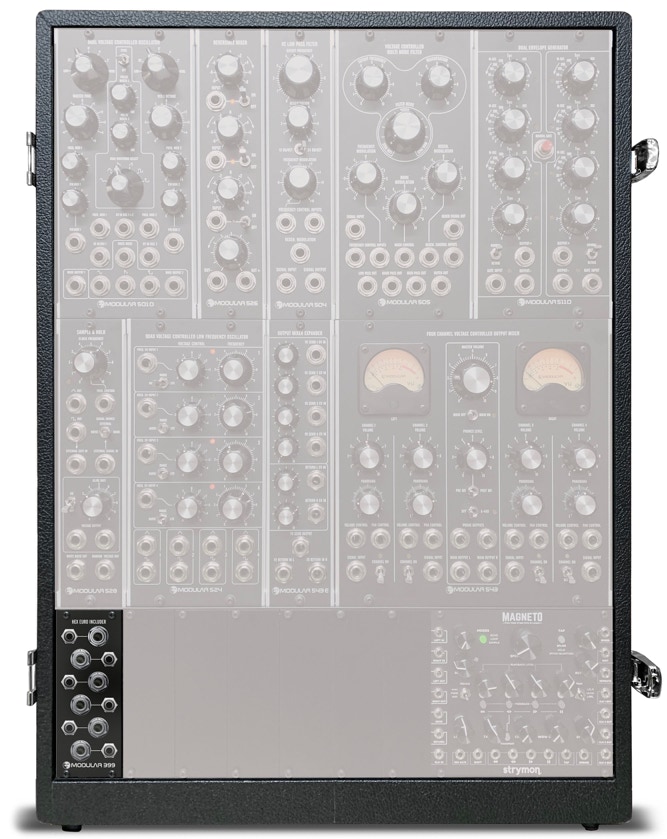

M 500-PEuro
Powered Tolex Portable Cabinet
Vintage style tolex covered portable wooden cabinet with two rows in standard (MU) height for eight units each and one row for modules in Euro size (85 HP).
With two separate power supplies:
- One to power the MU sized rows with connectors for synthesizers.com™ and delivering +15 V/2 A | -15 V/1 A | +5 V/0.6 A. Cabling between power supply and modules is included.
- One to power the Euro sized row with
16pin keyed headers and delivering
±12 V/1.3 A and +5 V/0.6 A. Cabling between power supply and modules is not included.
